TSACO-3000 AUTOMATIC FAILOVER SWITCH
HIGHLIGHTS
- All Outputs Active Simultaneously
- ATSC Mobile DTV Ready
- Field Upgradeable
- Supports Unicast and Multicast
- Forward Error Correction (FEC)
- PCR Restamping (configurable)
- Supports 188 & 204 Byte Packets
- Equalized and amplified Loop out (ASI and SMPTE 310M Only)
- User Selectable: Input/Output Null Packet Insertion/Removal
- Front Panel Error Indicators
- Dual Power Supplies

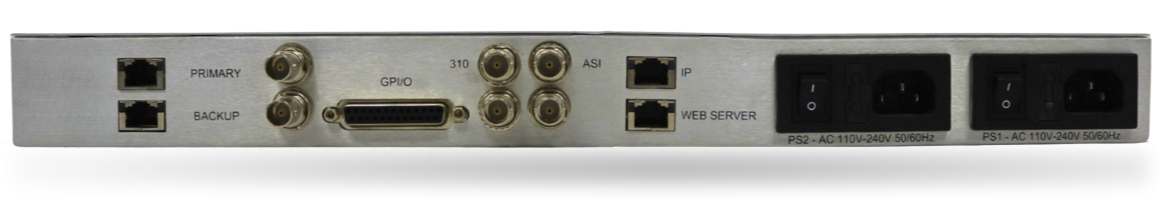

The TSACO-3000 is a transport stream automatic failover switch and transport stream format converter all in one. The TSACO-3000 is compliant with both ATSC and DVB standards and is ATSC Mobile DTV Ready.
The TSACO-3000 enables broadcasters to automatically switch between a primary and backup transport stream in the event of a failure automatically preventing broadcasters from unexpectedly going off air as defined in the user configurable web interface.
It also converts transport streams between ASI, 310M & Transport Streams over IP (TSoIP) formats. It accepts all three formats and will output all three formats simultaneously. It is controlled via a web server user interface and allows the user to configure trigger thresholds and monitor the unit status. Adhering to the concept of our TSACO family of products, the TSACO-3000 is designed for easy operation.
The TSACO-3000 has GPI/O, dual power supplies for reliability and is field upgradable. Transport stream encapsulation, forward error correction and UDP/RTP de-encapsulation as defined by the SMPTE 2022-1 specification.
Application
Terrestrial, Cable and Satellite broadcast systems with or without ATSC Mobile DTV.
