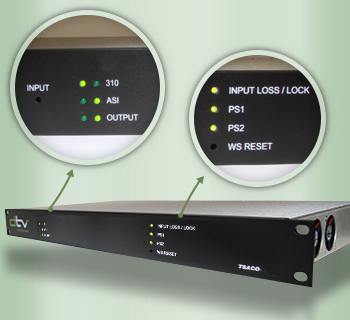

TSACO-1200 AUTOMATIC FAILOVER SWITCH
HIGHLIGHTS
- Primary and Backup ASI or 310M inputs
- Single relay-based output - Base Model
- Optional dual active outputs with seamless switching
- Optional format conversion on outputs - ASI to/from SMPTE-310M
- Controlled via web-server interface
- Relay bypass on primary input
- Rear panel GPIO connector
- Dual power supplies for reliability
- Field upgradeable
The TSACO-1200 is a transport stream automatic failover switch that enables broadcasters to automatically switch between primary and backup transport streams in the event of a failure, preventing an unexpected off-air situation, as can be defined in the user configurable web interface.
The TSACO-1200 can be ordered as a basic relay-based, single-output switch for ASI or SMPTE-310M transport streams. Optionally, the TSACO-1200 can be upgraded to provide dual-active outputs, seamless switching to maintain sync-lock during a switch, and independent conversion of each output to either ASI or SMPTE-310M.
It is controlled via a web server user interface and allows the user to configure trigger thresholds and monitor the unit status. Adhering to the concept of our TSACO family of products, the TSACO-1200 is designed for easy operation.
The TSACO-1200 has GPI/O, dual power supplies for reliability, and is field upgradable.
Application
Terrestrial, Cable, and Satellite broadcast systems using ASI and/or SMPTE-310M transport streams.
