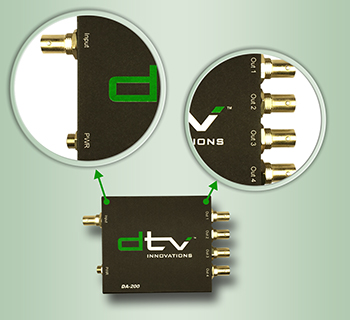

DA-200 1x4 DISTRIBUTION AMPLIFIER (ASI, 3G & HD/SD-SDI)
HIGHLIGHTS
- 1 auto-sensing input, 75 ohm BNC connector
- Input signal lock detection LED
- 4 re-clocked outputs, 75 ohm BNC connector
- SD/HD Status LED
- Data rates from 270 Mbps to 3 Gbps
- Use with encoders, analyzers and other compliant equipment
- Ultra compact, reliable, cost effective solution
- Comes complete with power supply
- LED Power Indicator
OVERVIEW
The DA-200 is a compact multi-rate re-clocking distribution amplifier for use as a point-to-multipoint distribution hub of signals around your facility or an inline repeater to extend the signal over greater distances.
The DA-200 provides automatic input detection, reclocking and cable equalization at 0.270, 1.485 and 2.97 Gbps.
The DA-200 passes embedded audio, ancillary ID and metadata information.
The DA-200 has a small form factor replacing rack mounted equipment frames saving valuable rack space. The DA-200 is a simple and cost effective solution.
