CX-4 TRANSPORT STREAM CONVERTER (ASI & TSOIP)
HIGHLIGHTS
- Ethernet - IEEE 802.3ab RJ-45 with LEDs 100/1000 Auto Sense
- DVB-ASI - 75 Ohm BNC Connector
- Encapsulation - UDP or RTP
- FEC - SMPTE 2022
- Rx or Tx Bitrate - .01 to 214 Mbps
- Latency - 1 ms
- Jitter Tolerance - 1 to 500ms
OVERVIEW

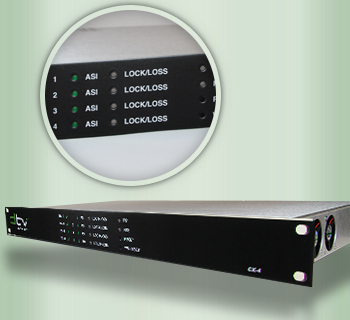

The CX-4 is a Quad Transport Stream Converter. The CX-4 converts IP to ASI or ASI to IP independently.
It complies with both DVB standard and SMPTE2022. The IP interface supports Transport stream encapsulation, forward error correction and UDP/RTP de-encapsulation as defined by the SMPTE 2022 specification.
Adhering to our products philosophy, CX-4 is designed for easy operation. It is controlled via a web server user interface and it is field upgradable. It comes with dual power supplies for reliability.
Applications
Terrestrial, Cable and Satellite broadcast systems with or without ATSC Mobile DTV.
